QUICK START GUIDE
Everything you need to set up, use, charge, clean, and maintain your illumibite.
GETTING STARTED
illumibite is a compact, hands-free flashlight designed for work, outdoor use, and emergency situations. This guide covers the basics of setup, operation, charging, care, and safe everyday use.

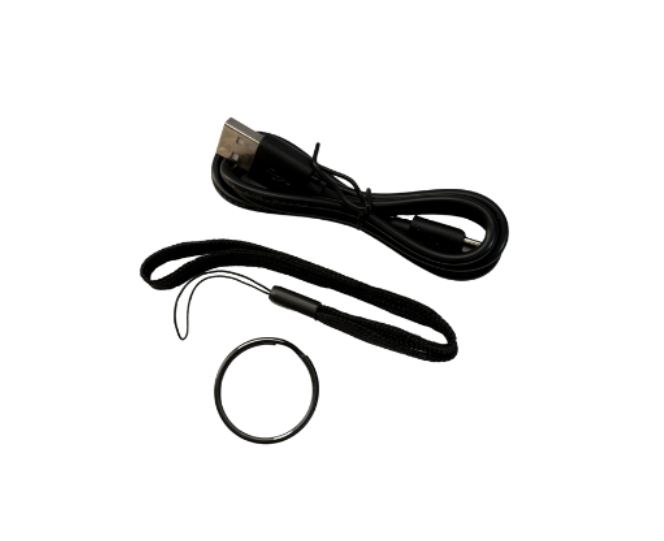

WHAT’S INCLUDED
illumibite Flashlight
Removable Bite Grip
USB-C Charging Cable
Accessories
HOW TO USE
1
POWER ON & OFF
Press the power button 3 times rapidly to turn your illumibite ON/OFF. This intentional triple-click design helps prevent accidental activation when not in use.
2
CYCLE THROUGH LIGHT MODES
Click the power button once to cycle through all 7 lighting modes. This allows you to quickly choose the setting that best firs your environment and visibility needs.
3
To Use Hands-Free
Remove protective cover and place the bite grip comfortably between your teeth maintaining a natural grip.
HANDS-FREE OPERATION
Place the bite grip comfortably between your teeth for temporary hands-free lighting. Maintain a secure but natural grip, and avoid excessive bite pressure during use. This allows you to keep both hands available for better control during close-up tasks.
CHARGING
Always fully charge illumibite before first use using the included USB-C charge cable. Charge fully before extended use, a full charge from an empty battery takes 2 hours. Make sure the charging port cover is securely closed to maintain IP rating.

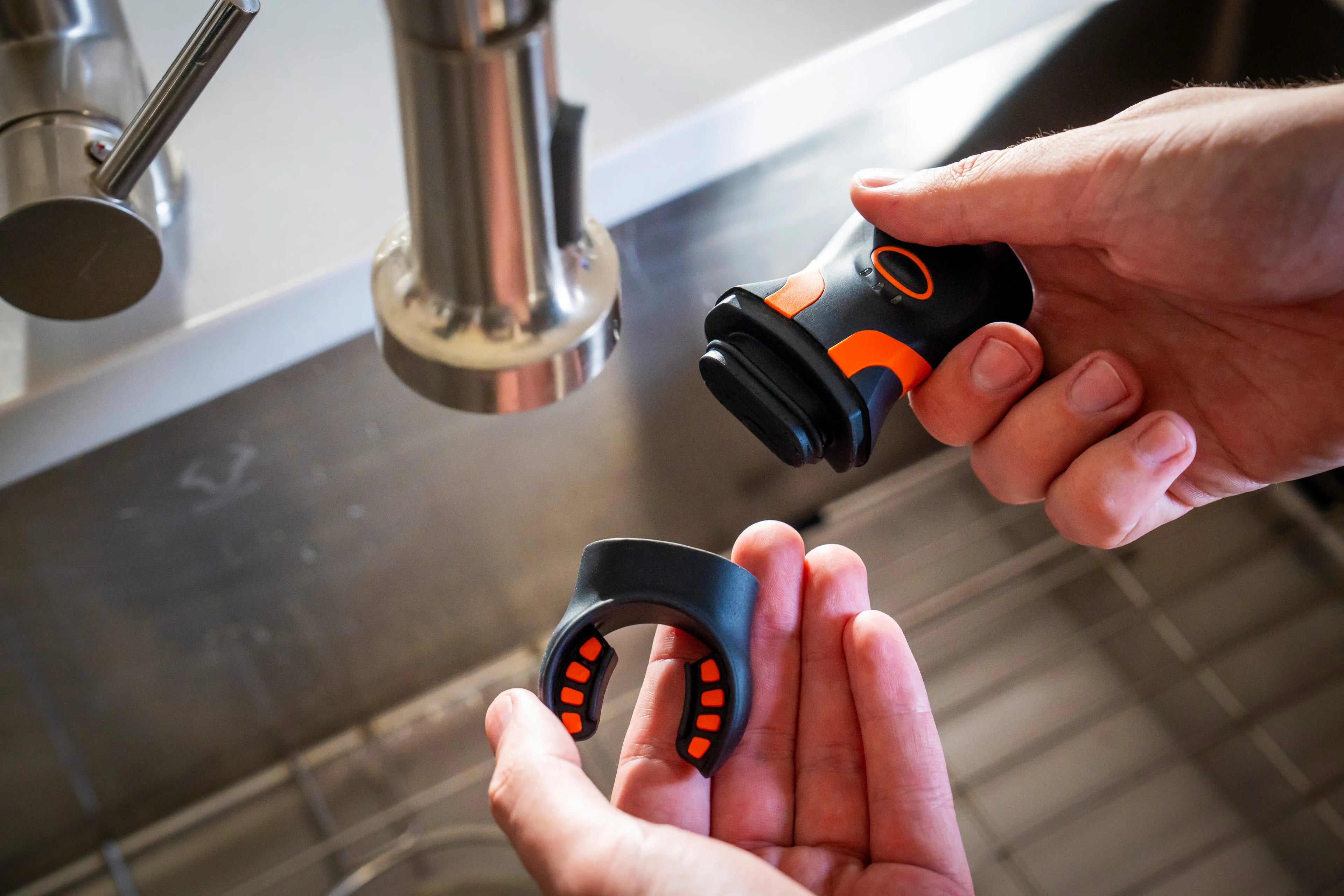

CLEANING & MAINTENANCE
Remove the bite grip regularly and clean it with mild soap and warm water. Let it dry completely before reattaching. Wipe the flashlight body with a soft, slightly damp cloth, and avoid harsh chemicals or abrasive cleaners.
SAFETY INFORMATION
1
Do not look directly into the beam
2
Keep away from small children unless supervised
3
Do not use a damaged unit
4
Do not attempt to modify or disassemble the flashlight
5
Allow the unit to dry fully before charging if exposed to moisture
6
Make sure charging port cover is fully closed to maintain waterproofing.
Quick Facts
Find quick answers and simple steps on operating your illumibite.
How do I clean the bite grip?
Remove the bite grip and wash with warm water and mild soap. Rinse thoroughly, let dry completely, then reattach to unit and place cap back on.

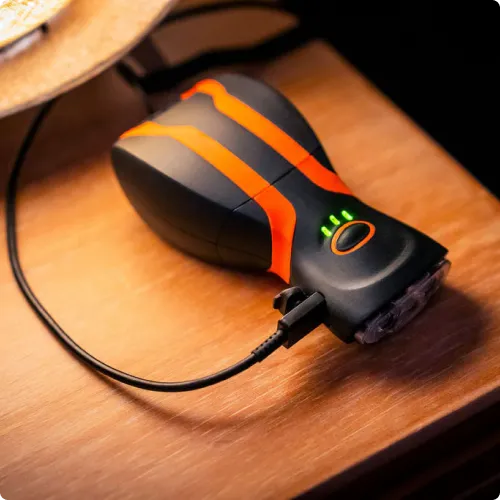

What do the indicator lights mean when charging?
illumibite uses its LED indicators to display both charging process and battery level.
When plugged in, the LEDs will automatically display charging progress:
- Below 33% - LED 1 blinks
- 34%-66% - LED 1 stays solid, LED 2 blinks
- 67%-99% - LED 1 and LED 2 stay solid, LED 3 blinks
- Fully Charged - All 3 LEDs remain solid

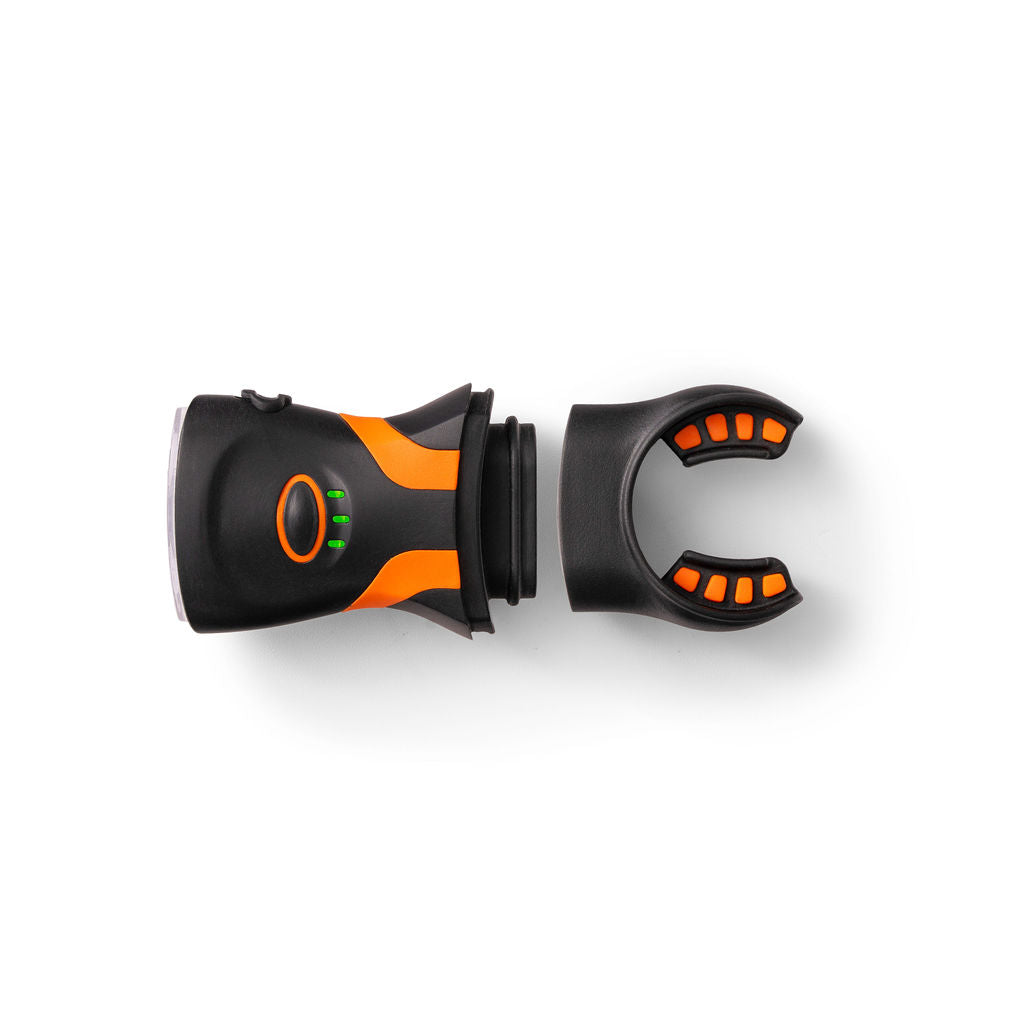

Can I replace the bite grip?
Yes. Replacement bite grips are available and recommended for maintaining proper hygiene. Regularly swapping the bite grip also helps extend the life of your illumibite by not having to replace the flashlight. Additionally, interchangeable grips make it easy for multiple users to safely share the same device or mix and match your favorite colors.
Where can I download the User Manual?
Download your User Manual below according to your language:
Is the bite grip material safe in mouth?
Yes. The bite grip is made from premium, food-grade, BPA-free silicone. Its non-toxic, durable, and designed for safe, comfortable use. Our materials and components are thoroughly tested to meet strict safety and quality standards, making them suitable for repeated oral use and everyday reliability.
How to check battery level?
Press and hold the power button for 2 seconds to view your battery status while unit is ON or OFF. The LEDs will briefly illuminate to indicate battery level:
- 67%-100% - LEDs 1, 2, and 3 turn on
-34%-66% - LEDs 1 and 2 turn on
- 20%-33% - LED 1 turns on
- Below 20% - LED 1 blinks
Low Battery Warning: When the battery is critically low, LED 1 will blink repeatedly and the device will automatically power off.
